Fluid Suction Pipe

Product Categories：Powertrain Assembly System
Product Introduction：
Part of the engine output mechanical energy can be transfered to pressure energy (hydraulic or pneumatic). Under driver's control, generate mutiple direction hydraulic or air pressure force to steering transmission linkage or one driving part of steering gear so that the vehicle steering force for drivers could be reduced.

Main Feature
Product Properties

1. Cleanliness Requirement: weight of residual impurities ≤ 0.06mg/cm2. Size of residual impurities: fiber ＜（1200X90）um，metal ＜315um.
2、Burst pressure: not less than 20 MPa.
3、Vacuum Resistance Function：Within 20S of pressure became stable, no surface change.
4、Position replacement force for bracket and bushing to tube＞50N。

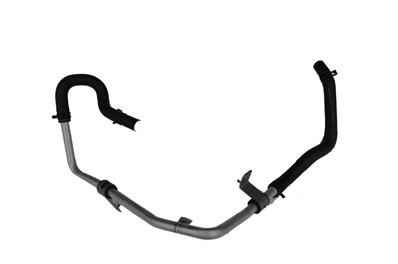

Suction pipe is consist of Aluminum tubes, Suction hoses, washers, brackets, clamps. Hoses are connected with Aluminum tube by clamps.
