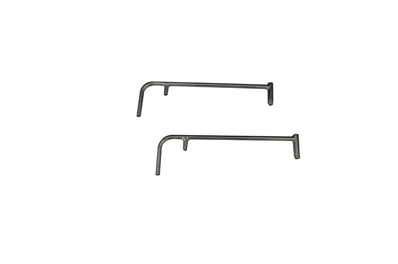

Engine Lubrication Pipe
Product Categories:Engine Lubrication System
Product Introduction:
Lubrication System is applied to supply sufficient, suitable temperature clean engine oil to the friction surface of all transmission parts, and form a layer of oil film to achieve fluid friction. Therefore, frictional resistance and power consumption will be reduced, and mechanical wear will be lighten, as to raise engine working reliability and durability.Oil pan suction pipe: Fitted with filter net which installed on the oil pan. To avoid large particle impurities in the oil flow into the lu
  • Main Feature
  • Product Properties
1. Cleanliness requirements: residual impurities weight ≤ 0.06mg/cm2. impurity size: fiber<(1200X90)um,metal<315um.
2、Burst Pressure: Not less than 5MPa.
3. Salt spray test: no basic erosion for metal pipes during 144h testing period

Engine lubrication pipe is consist of steel pipes, welding flanges & joints. The above components are connected by braze welding. Surface Zinc coating.
